2015H 2040H 2060H Sine Wave 15/40/60MHz DDS Digital Signal Generator Dual-channel USB 2Vpp-20Vpp Range Function Generator(RUOSHUI 2060H)

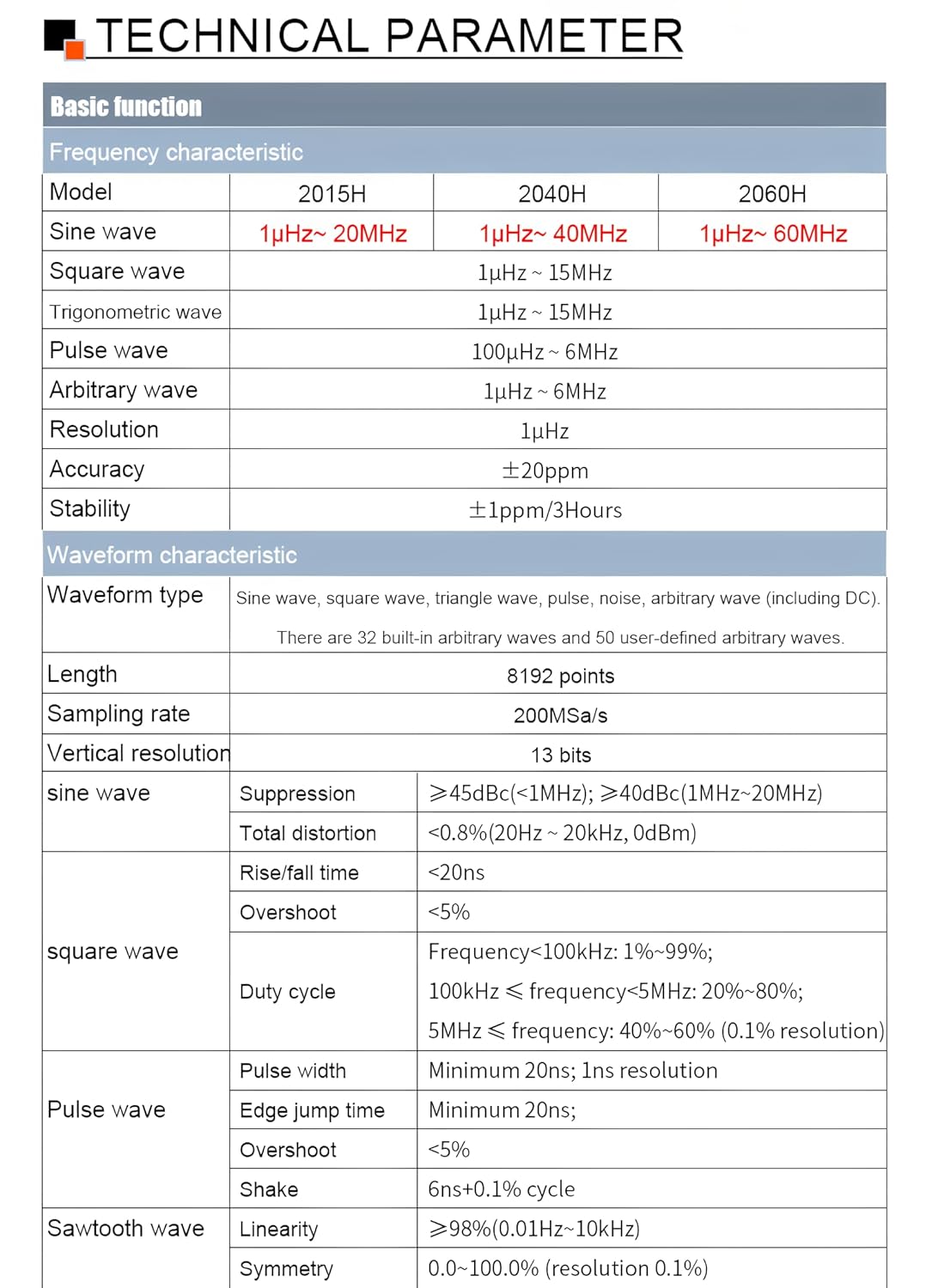

RUOSHUI 2015H 15MHz DDS Signal Generator Counter Dual-channel universal Function frequency generator Arbitrary Waveform Frequency Meter RUOSHUI 2015H 15MHz RUOSHUI 2040H 40MHz RUOSHUI 2060H 60MHz Feature: Adopt 320*240 2.4 inch TFT color LCD display, simultaneously display parameters of CH1 and CH2.Ability to reproduce patterns of custom waveform. Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation. Completely independent dual channels output, synchronizing operation and adjustable phase difference.60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits. High frequency accuracy and resolution:frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01uHz.High amplitude resolution: the minimum amplitude resolution can reach 1mV, amplitude range is 2mVpp~20Vpp. Duty-cycle of each channel can be adjusted independently, the adjusting resolution is 0.1%.Sweep function: linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time; forward, backward and roundtrip sweep directions. With pulse trains burst output function: allow the unit output 1~1048575 arbitrary pulse trains. Measurement functions: can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range.-9.99V~9.99V DC offset range, offset resolution: 0.01V. With digital signal output function, CMOS output range0~10V.Storage feature: can store 100 groups of parameters set by the user and extract at any time. Counter function: with DC and AC coupling modes Communication function: the PC can be used to control the instrument. With output short-circuit protection: all signal output can work 60s under load short-circuit condition.

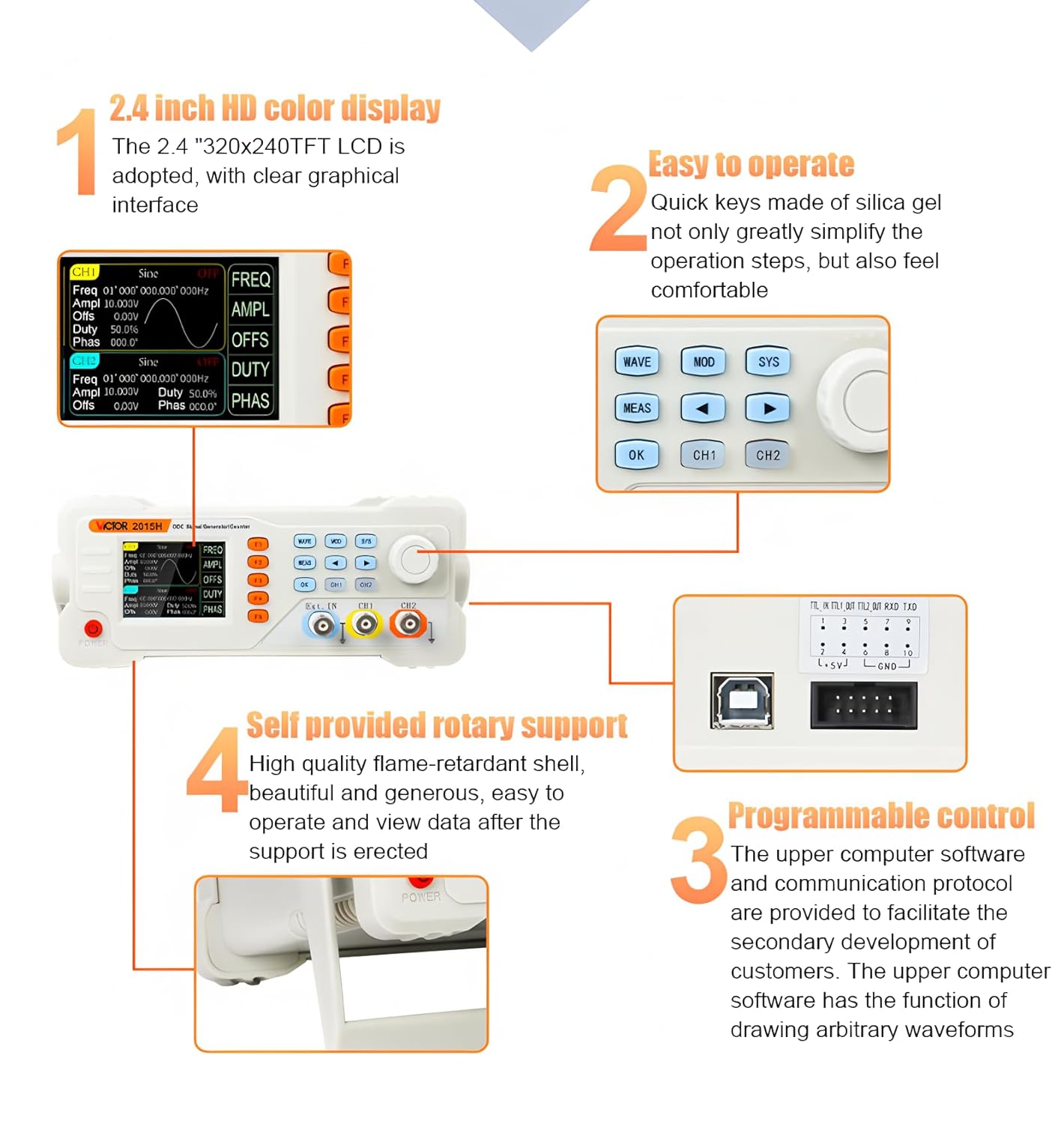

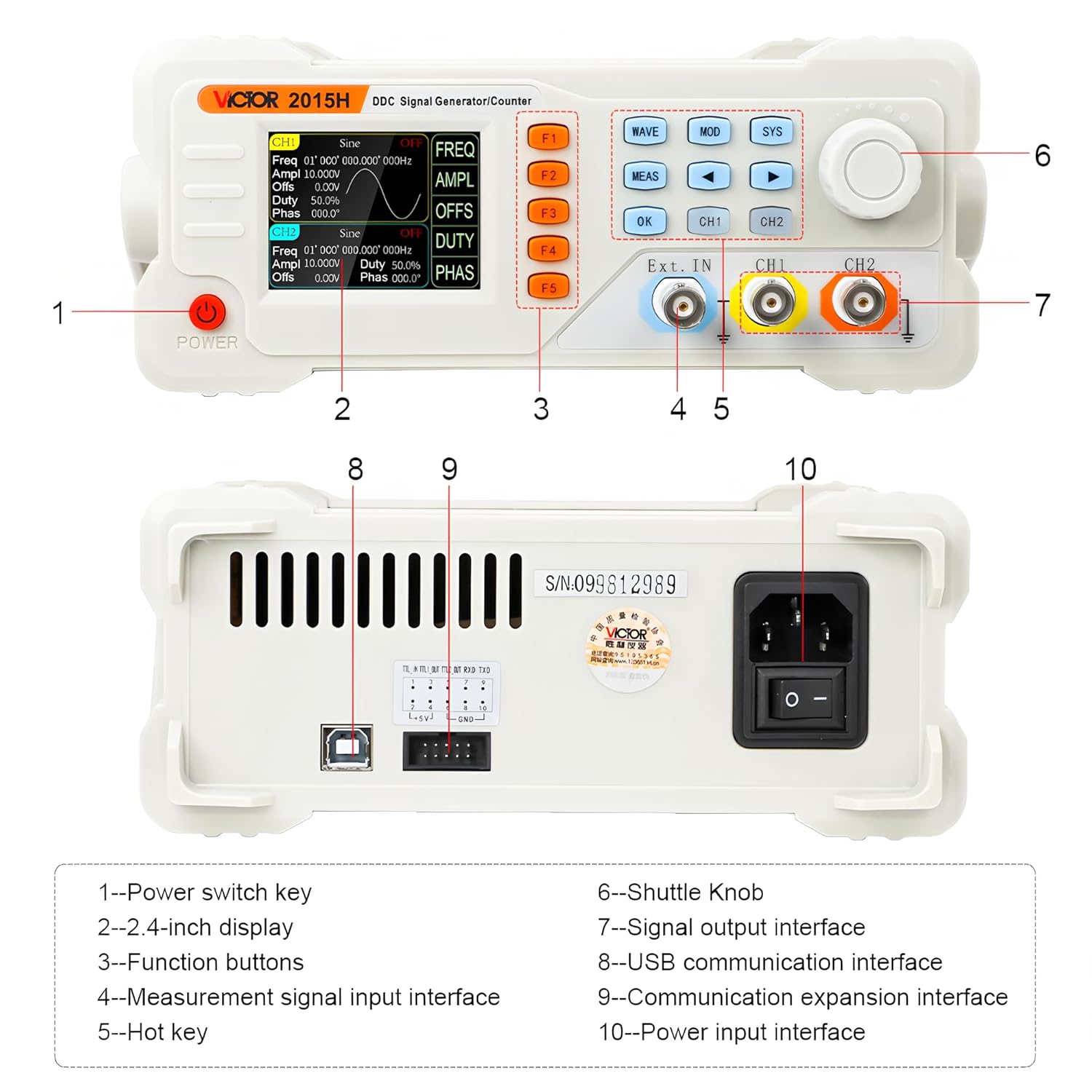

• VICTOR 2060H Adopt 320*240 2.4 inch TFT color LCD display
• VICTOR 2015H 15MHz;VICTOR 2040H 40MHz;VICTOR 2060H 60MHz
• 2 channel Function Signal generator combines multiple functions in one
• Min.Frequency Resolution 0.01uHz(0.00000001Hz)
• Puls Wave Frequenc,TTL Digital Wave Frequency,Arbitrary Wave Frequency 0-6MHz
