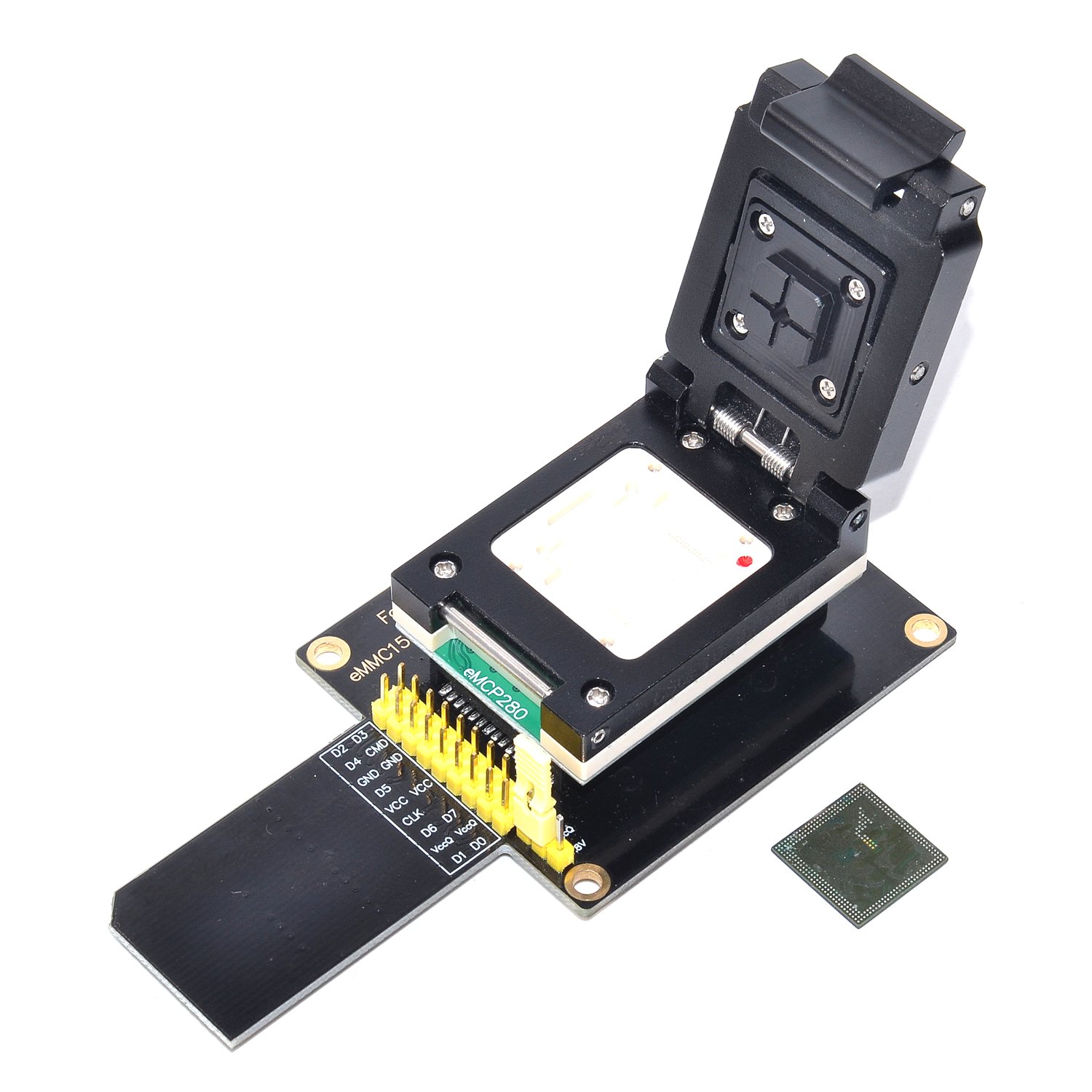

BGA169 BGA153 Reader eMMC153+169 Adapter FBGA153-169 Ball Programmer for Toshiba KMVTU000LM-B503 THGBM5G7A4JBA4W Skhynix Memory Reading/Writing with SD Interface(eMMC-SD Adapter)

Model Number: eMMC153-169-SD Adapter. Applicable IC Dimensions: 9x11mm, 11x10mm, 11.5x13mm, 12x16mm, 12x18mm, 14x18mm(11.5x13mm is the Default IC Frame/Limiter) Please Contact us before purchase if you have any concern. Email: [email protected]. Apply to Unencrypted eMMC153,eMMC169,FBGA153/BGA169 Memory chip Flash memory(DO NOT FIT FOR NEITHER OF UFS BGA153 CHIP FROM SAMSUNG S6/S6+ seriese,NOR FOR MOST ANDROID 6.0+ OS SMARTPHONE). For Reading and Writing eMMC, Data Recovery(to Restore contacts/messages/SMS/photos/videos etc. Connect BGA Adapter/Reader to USB interface port on your PC/Notebook by a USB-SD Card Reader, no need to work with other programmer nor eMMC box. Linux OS(such as X/Ubuntu)is recommended to read to chip. Once the chip is fully connected to the PC,Linux will read the chip and also mounted all of the partitions on chip automatically,and you make a full image of the chip.

• FBGA153/169 Ball, eMMC169, eMMC153 Internal Storage Memory(Not fit for UFS,iPhone Memory)
• Reading and Writing Adapter apply to Most Android Cellphone eMMC Memory chip,Kingston, Samsung, icron, HTC, MTK, Intel, Infineon, Skhynix,Toshiba Internal Memory/Flash Storage
• Mobile Chip-off Date Recovery Socket for Most Android Cellphone caused by accidantal physical/water damage, such as Cracked,Smashed, to recover SMS/Contacts/Photos/Music/Video etc.
• Applicable IC Dimensions:9x11mm, 11x10mm, 11.5x13mm, 12x16mm, 12x18mm, 14x18mm, thickness of 0.8 to 1.5mm, 0.5mm pin pitch(Note:11.5x13mm is the default limiter)
• Connect Socket/Reader to SD/USB interface port on your PC/Notebook by a USB-SD Card Reader,run recovery software to restore data
