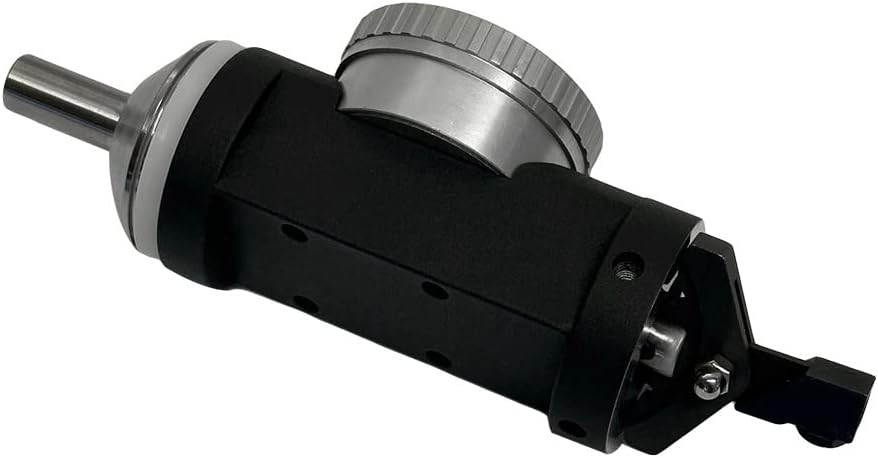

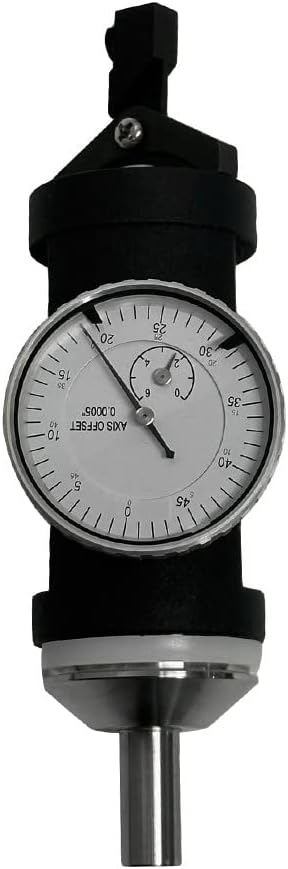

Co-Ax Indicator Milling Machine Coaxial Coax .0005'' Axis Straight Curved Feeler

Co-Ax IndicatorAccuracy to Within .0002" of True Center.0005" Graduation6-7/8 Length3/8" Diameter x 7/8" Long Shank1/8" Diameter Feeler Ball250 Axis Offset Measuring Range5/32 to 4-1/4 Diameter Internal CapacityZero to 4-1/4 Diameter External CapacityIt is Recommended that the Operating Speed not Exceed 800 RPM ApproximatelyAll Points Included - Great for setups in MillDesigned for Centering a Work Piece of FixtureOperates at Any AngleUse Vertical or HorizontalUser Internal or ExternalWhile Spindle Rotates, the Centering Indicator Always Faces the Operator6 Points and Feeler IncludedRestraining Rod Center Point Feeler2" Straight Feeler4" Straight Feeler6" Straight Feeler2" Curved Feeler4" Curved Feeler6" Curved FeelerCase includedCase may varyCase overall dimension: 8-1/2''L x 6-1/2''W x 3''H *Estimate Only*Quantity: 1

• Accuracy to Within .0002" of True Center; .0005" Graduation; 6-7/8 Length
• 3/8" Diameter x 7/8" Long Shank; 1/8" Diameter Feeler Ball; 250 Axis Offset Measuring Range; 5/32 to 4-1/4 Diameter Internal Capacity; Zero to 4-1/4 Diameter External Capacity
• It is Recommended that the Operating Speed not Exceed 800 RPM Approximately; All Points Included - Great for setups in Mill; Designed for Centering a Work Piece of Fixture; Operates at Any Angle; Use Vertical or Horizontal; User Internal or External; While Spindle Rotates, the Centering Indicator Always Faces the Operator; 6 Points and Feeler Included; Restraining Rod Center Point Feeler
• 2" Straight Feeler; 4" Straight Feeler; 6" Straight Feeler; 2" Curved Feeler; 4" Curved Feeler; 6" Curved Feeler
• Case included; Case may vary
