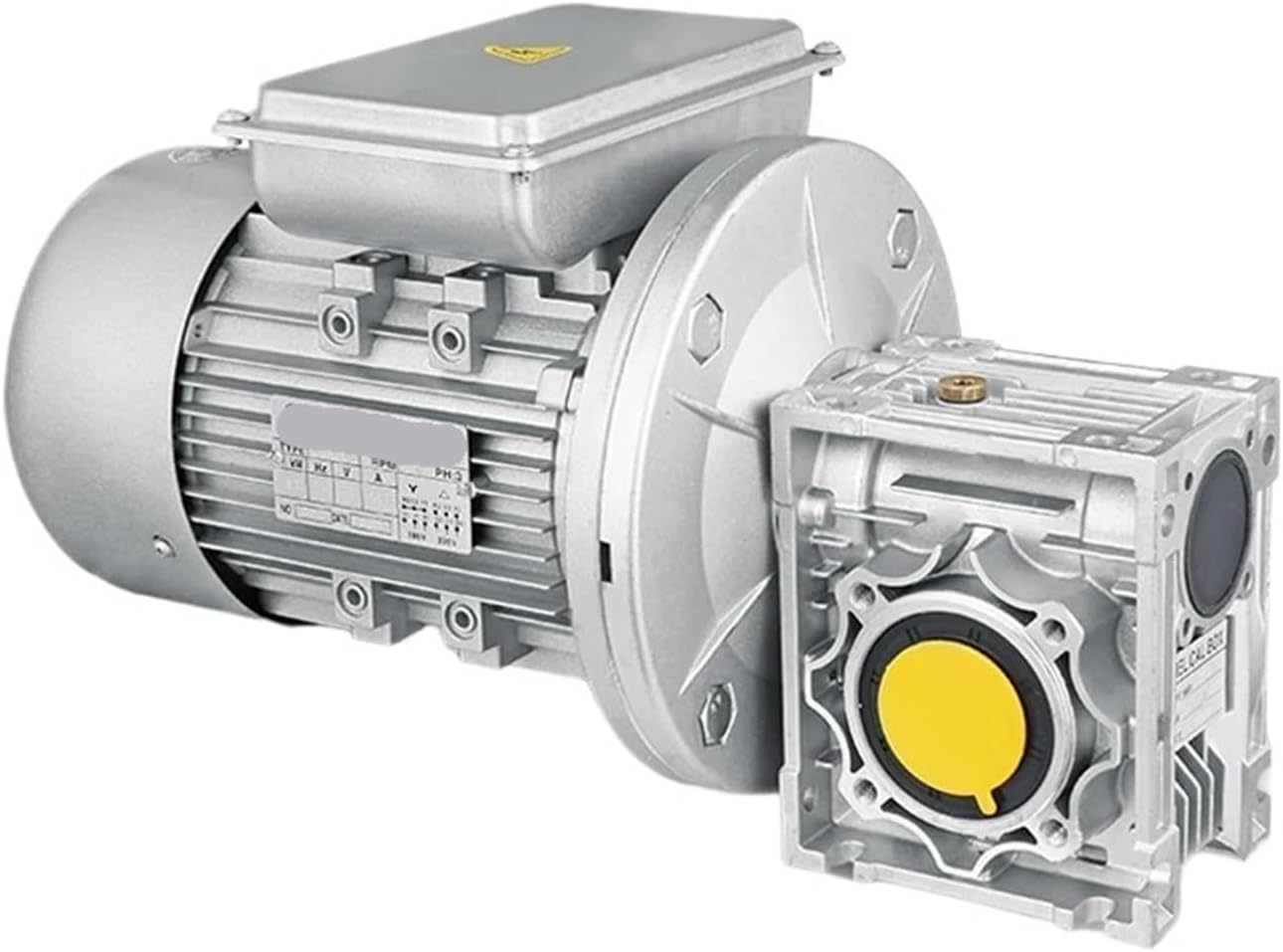

High Torque NMRV063 Worm Gear Reducer Gear Ratio 5:1 to 100:1 Input Hole 14mm/19mm/24mm Speed Reducer Suitable for Various Motor

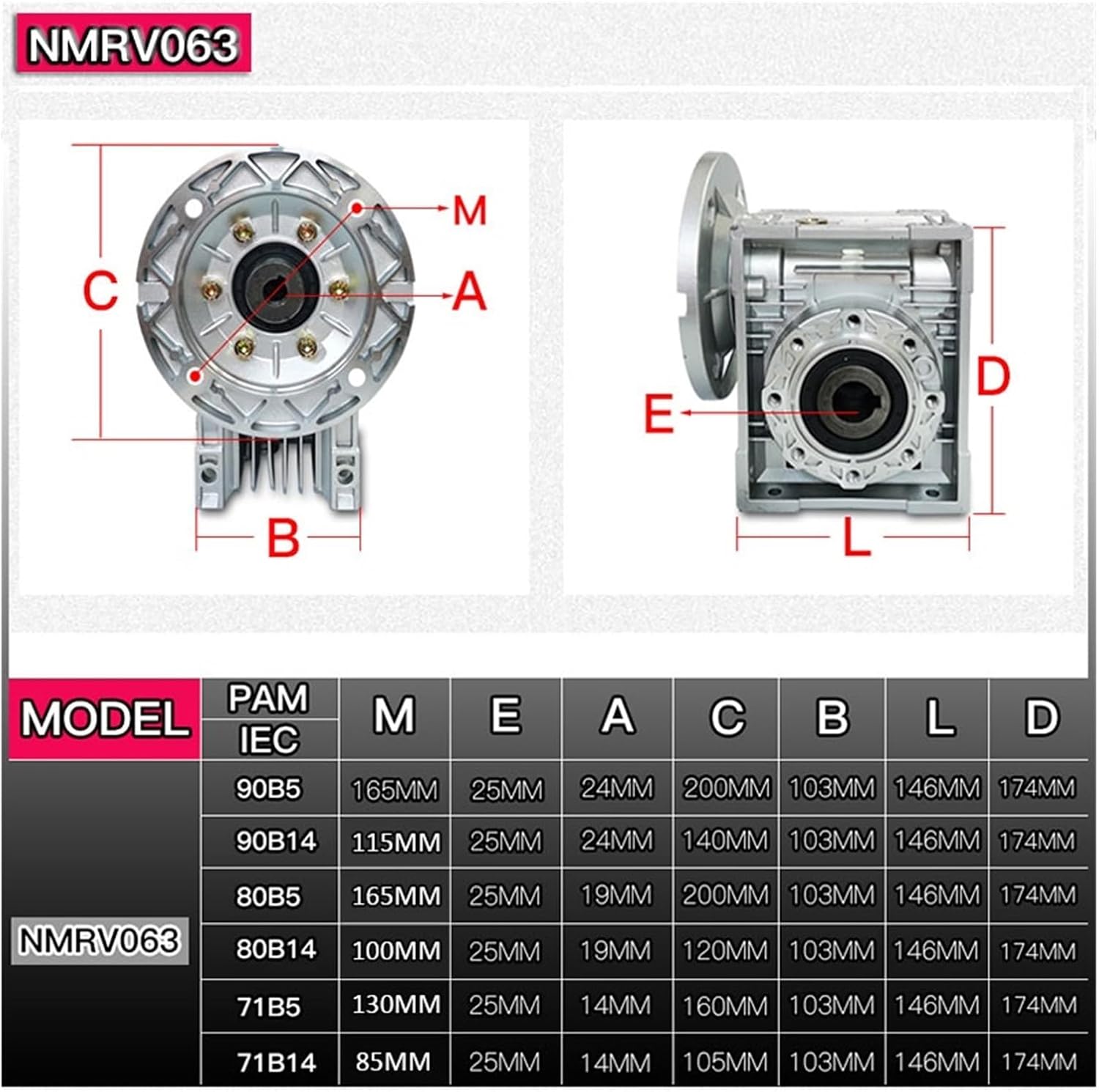

NOTA: Please note the size of the input hole you need after placing the order! Otherwise we will ship in standard size!GEAR RATIO :5:17.5:110:115:120:125:130:140:1 50:160:180:1100:190B5 :Standard size flange diameter 200mm, input shaft 24mm, output shaft 25mm90B14 :Standard size flange diameter 140mm, input shaft 24mm, output shaft 25mm80B5 :Standard size flange diameter 200mm, input shaft 19mm, output shaft 25mm80B14 :Standard size flange diameter 120mm, input shaft 19mm, output shaft 25mm71B5 :Standard size flage diameter 160mm, input shaft 14m, output shaft 25mm71B14 : Standard size flange diameter 105mm, input shaft 14mm, output shaft 25mm If you want to buy, please contact the staff MATERIAL : ALUMINUM ALLOYINPUT HOLE :14MM / 19MM / 24MMAXLE HOLE :Standard size 25MM ( Non standard size is 28MM/35MM, please contact customer service personnel )KEYWAY : 5MM / 6MM / 8MMTOOTH SURFACE HARDNESS :HARD TOOTH SURFACEA: flange D: Aluminum shell M: air leak H: bearing C:vortex ducer NMRV063 Worm NMRV063 ROUND FLANGE SIZE CHART NOTE:Please leave a message or note the input hole size you need when buying!Output 5:1/80:1Hard Tooth Surface Geared Motor For Nema23 Stepper Worm GearbBUYINGColor : SilverUsage : FAN,Home ApplianceModel Number : NMRV063 Worm GearConstruction : Permanent MagnetType : Geared motorProtect Feature : Drip-proofCommutation : BrushlessEfficiency : IE 1Installation form: : verticalTooth surface hardness : hard tooth surfaceLayout form : coaxialLevel : Level 1output hole : 25mmKeyway : 5mm/6mm/8mmmaterial : aluminumcasting process : Aluminum alloy integral moldingInput hole : 14mm/19mm/24mmReduction ratio : (5:1) (7.5:1)(10:1)(15:1)(20:1)(25:1)(30:1)(40:1)(50:1)(60:1)(80:1)(100:1)Maximum speed : About 1500 rpm
