MATEKSYS Matek H743-SLIM V3 BEC ICM42688P ICM42605 Baro Blackbox 2-8S F7 Flight Controller 30.5X30.5mm for RC Multirotor FPV Racing Drone Fixed Wing
Product details
| Management number | 213546269 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213546269 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

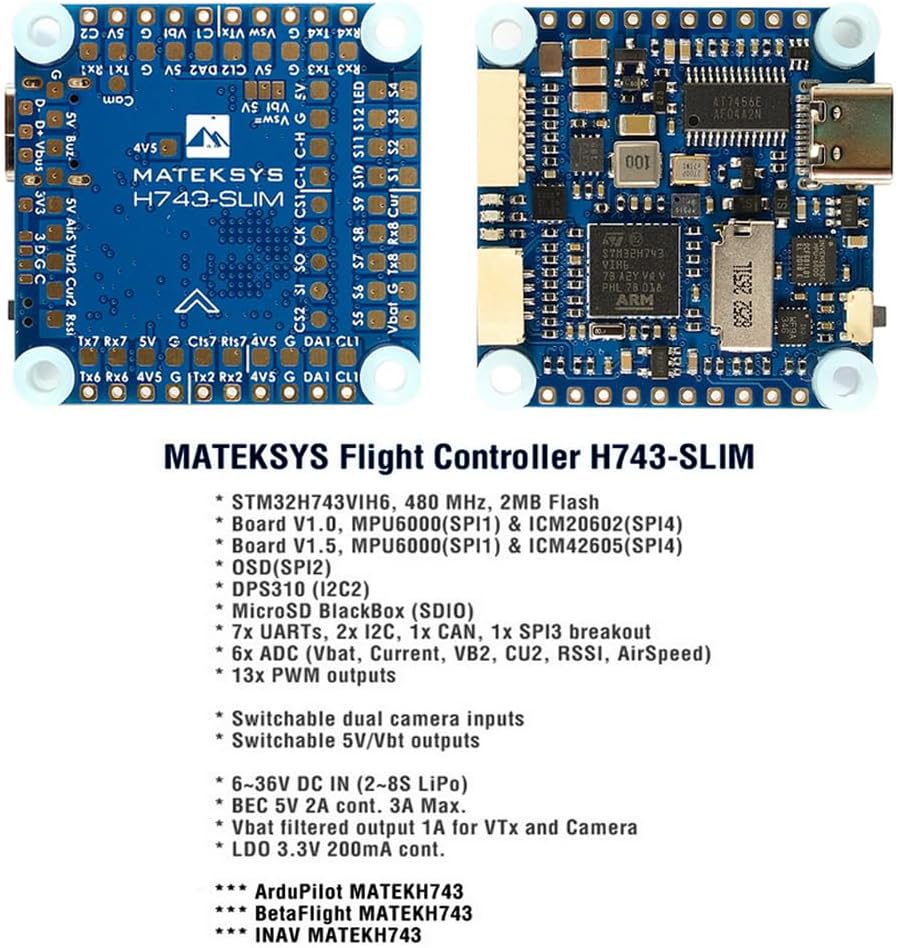

FC SpecificationsMCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB FlashBoard V1.0 IMU: MPU6000 (SPI1) & ICM20602 (SPI4)Board V1.5 IMU: MPU6000 (SPI1) & ICM42605 (SPI4)Baro: Infineon DPS310 (I2C2)OSD: AT7456E (SPI2)Blackbox: MicroSD card socket (SDIO)7x Uarts (1,2,3,4,6,7,8) with built-in inversion.13x PWM outputs(including “LED” pad)2x I2C1x CAN6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)1x SPI3 breakoutUSB Type-C(USB2.0)1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)Dual Camera Inputs switch5V/Vbat filtered power ON/OFF switchDJI FPV OSD is supported by any spare UARTPowerVbat Input: 6~36V (2~8S LiPo)BEC: 5V 2A cont. (Max.3A)LDO 3.3V: Max.200mANo Current Sensor built-inADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K)Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilotFC FirmwareArduPilot(ChiBiOS): MATEKH743BetaFlight: MATEKH743INAV: MATEKH743PhysicalMounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mmDimensions: 36 x 36 x 5 mmWeight: 7gIncluding1x H743-SLIM6x Silicon grommets M4 to M31x JST-SH1.0_8pin cable, 5cm2x JST-SH1.0_8pin connectors1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
- MATEKSYS H743-SLIM V3 BEC ICM42688P ICM42605 Baro Blackbox 2-8S F7 Flight Controller 30.5X30.5mm for RC Multirotor FPV Drone
- STM32H743VIH6, ICM42688P & ICM42688P, DPS310, OSD, 7x UARTs, 2x I2C, 1xCAN, 13x PWM outputs, BEC5V
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm，Dimensions: 36 x 36 x 5 mm，Weight: 7g
| Color | blue |
|---|---|
| Material | Plastic |
| Brand Name | SoloGood |
| Model Name | Matek H743-SLIM V3 |
| Item Weight | 0.02 Ounces |
| Part Number | H743 SLIM |
| Control Type | Remote Control |
| Manufacturer | Matek |
| Special Features | MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash,BEC ICM42688P ICM42605 Baro Blackbox 2-8S |
| Age Range Description | Youth |
| Are batteries included | No |
| Connectivity Technology | USB |
| Item Dimensions L x W x H | 0.02"L x 0.02"W x 0.02"H |
| Includes Rechargeable Battery | No |
| Wireless Communication Technology | Radio Frequency |
