TECHTONGDA Metal Shredder Machine Waste Crushing Grinding Milling Machine for Circuit Board Sheetmetal Plastic Paperboard Cloth Wood Kitchen Garbage 220V

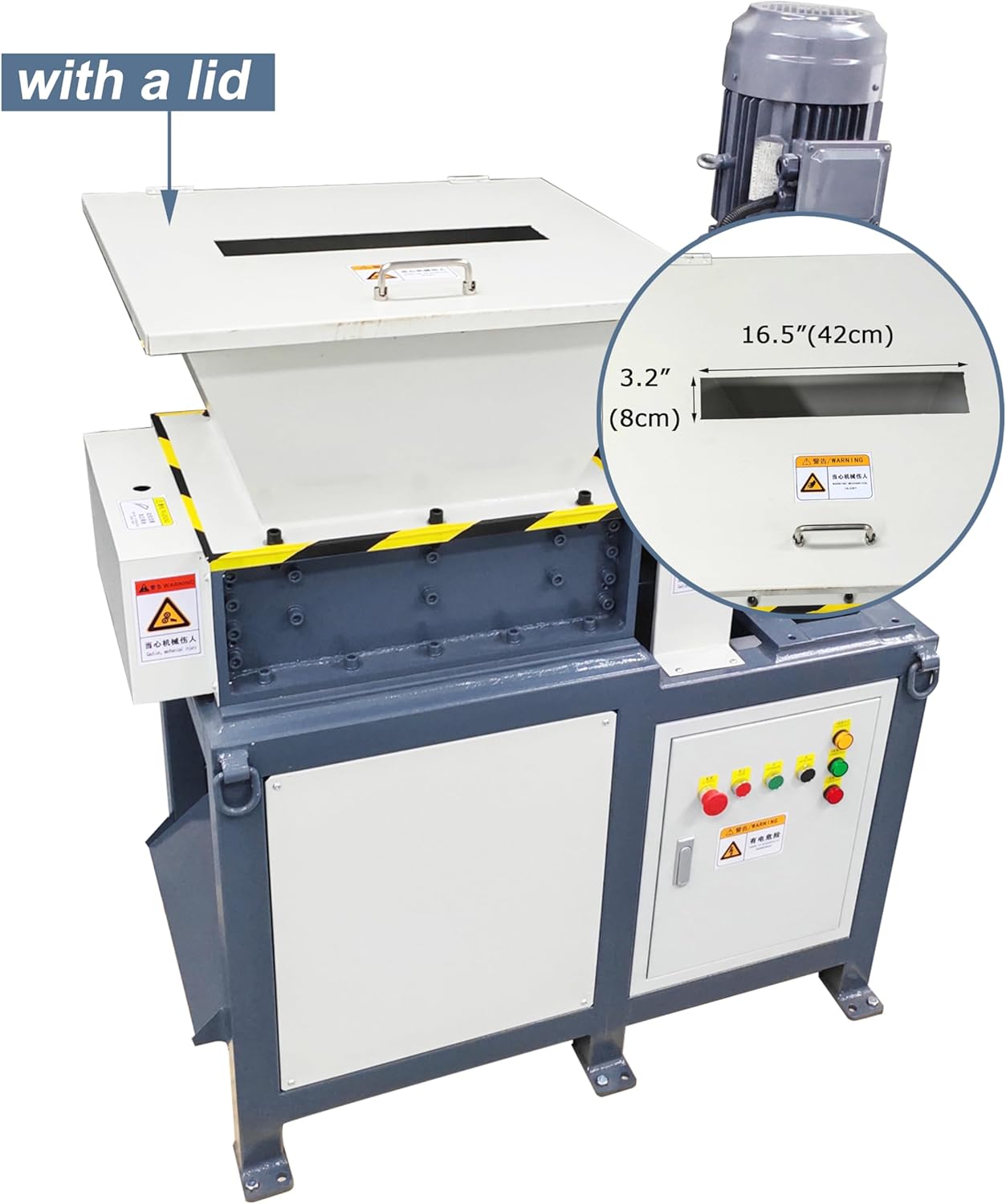

Parameters Voltage: 220V, 60Hz, 3-phase electricity Motor: 4000W 4-stage motor Reducer: JL3#-12 Input speed: 12r/min Input torque: 2919Nm Input shaft diameter: φ60mm/2.36inch Blade specifications and materials: Φ180*15mm/7.09*0.6inch,9CrSi Number of blades: 26 pieces Inner cavity size: 665*615mm/26*24inch Cutting mouth width: 420mm/16.5inch Height of cutting mouth from the ground: 200mm/7.87inch Package size: 48*29*68inch Package weight: 1265lbs

• [Application] The waste crushing machine adpots 26pcs of gear shaped blades on two rotating shafts. When the two rotating shafts rolls, stuff will be crushed. It can be used for many kinds of stuff such as sheetmetal, plastic, paperboard, cloth, wood, kitchen garbage and etc.
• [Steel Blade] The blade of metal plastic grinding machine is made of alloyed steel which is through several heat treatments for high toughness and hardness.
• [Special Design] The blade shaft is made of heavy duty steel, providing much power for baldes. The bearing block is dismountable, which makes it easy to disassemble the blades and bearing for maintenance and replacement. Sealed structure is adopted for protecting bearing and gear.

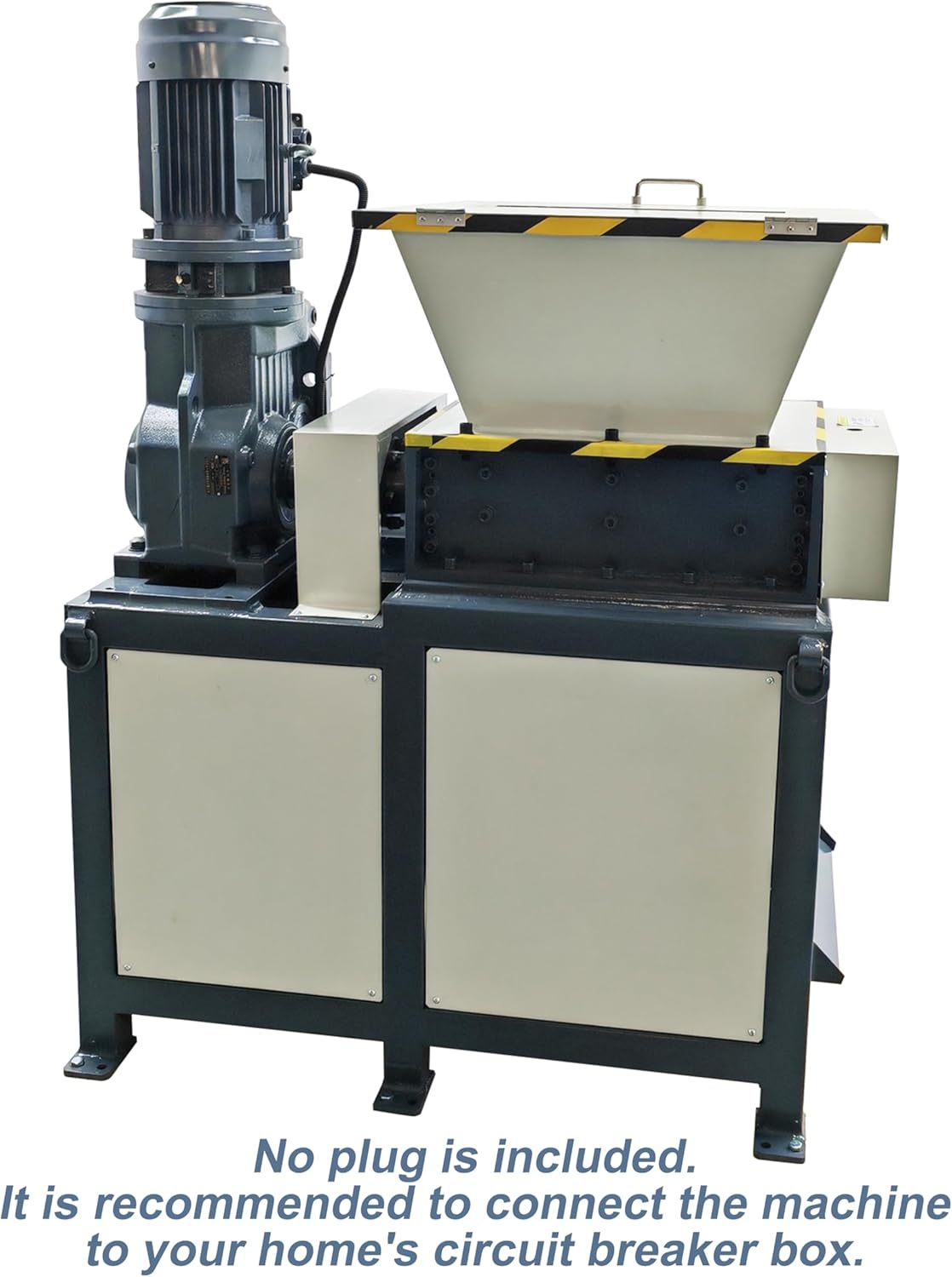

• [Powerful Motor] A 220V 4000W motor was equipped with the machine to provide powerful and stable power. The input torque reaches 2919Nm
• [Rotate in 2 Directions] The blade can rotate in 2 directions- clockwise and counterclockwise for thorough crushing.
